Main features:

1.CPU chip: Quad core

2.RAM + ROM: 2G + 16G / 2G + 32G /4 + 64G

3.Android 10 System

4.Multimedia format:AVI/ASF/MKV/FLV/RMVB/WMV/RM/MP3/MP4/ MOV/MPEG/VOB,support more formats, you can download other players in Google Store.

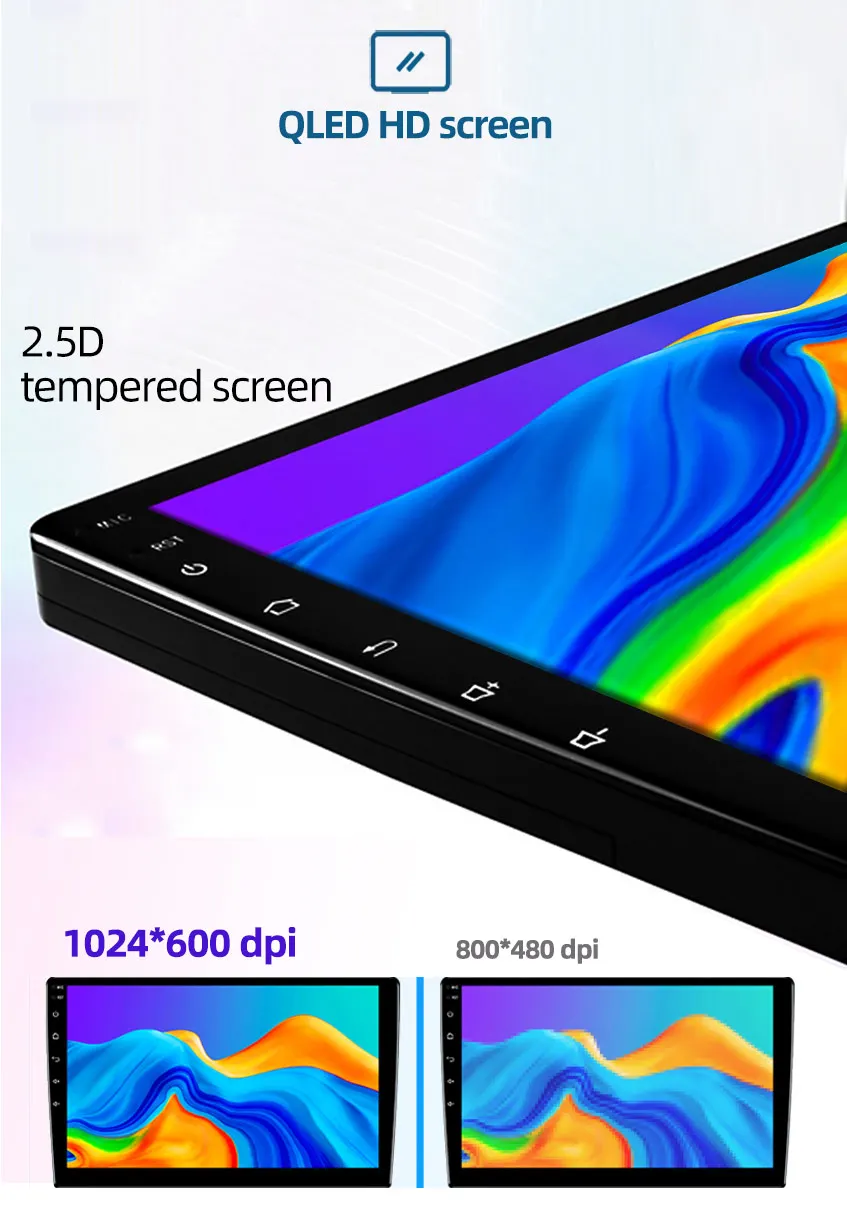

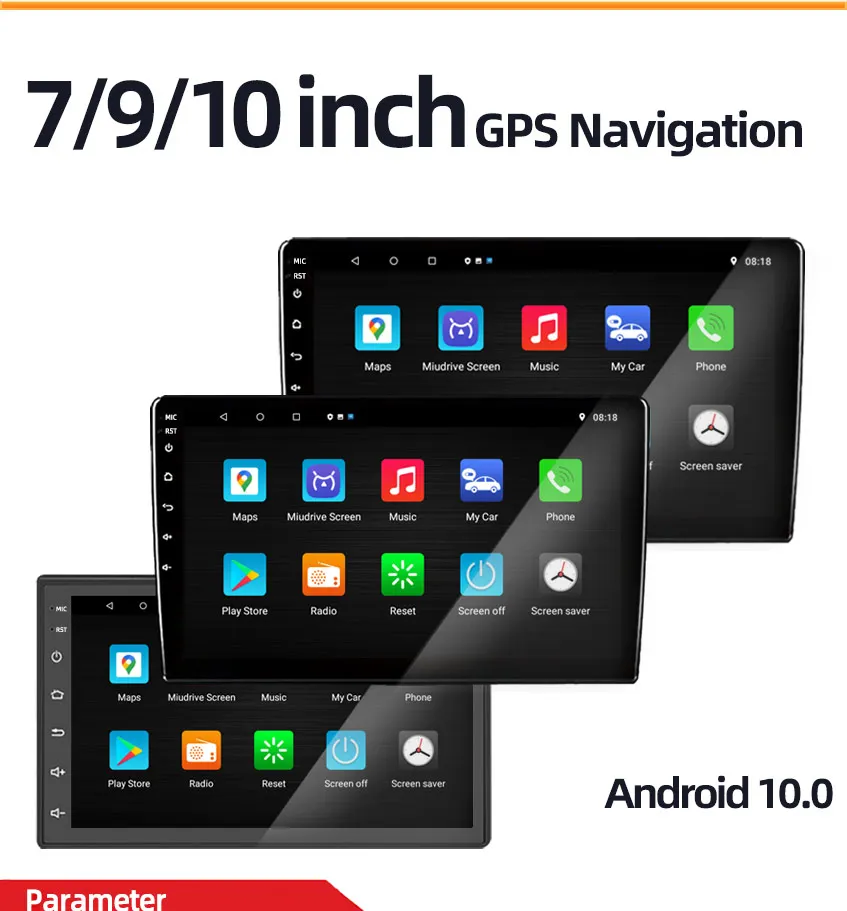

5.1024 * 600high definition digital display

6.Pre-installed maps: Google online maps or other popular maps Built-in WiFi module that supports WiFi connection to the Internet.

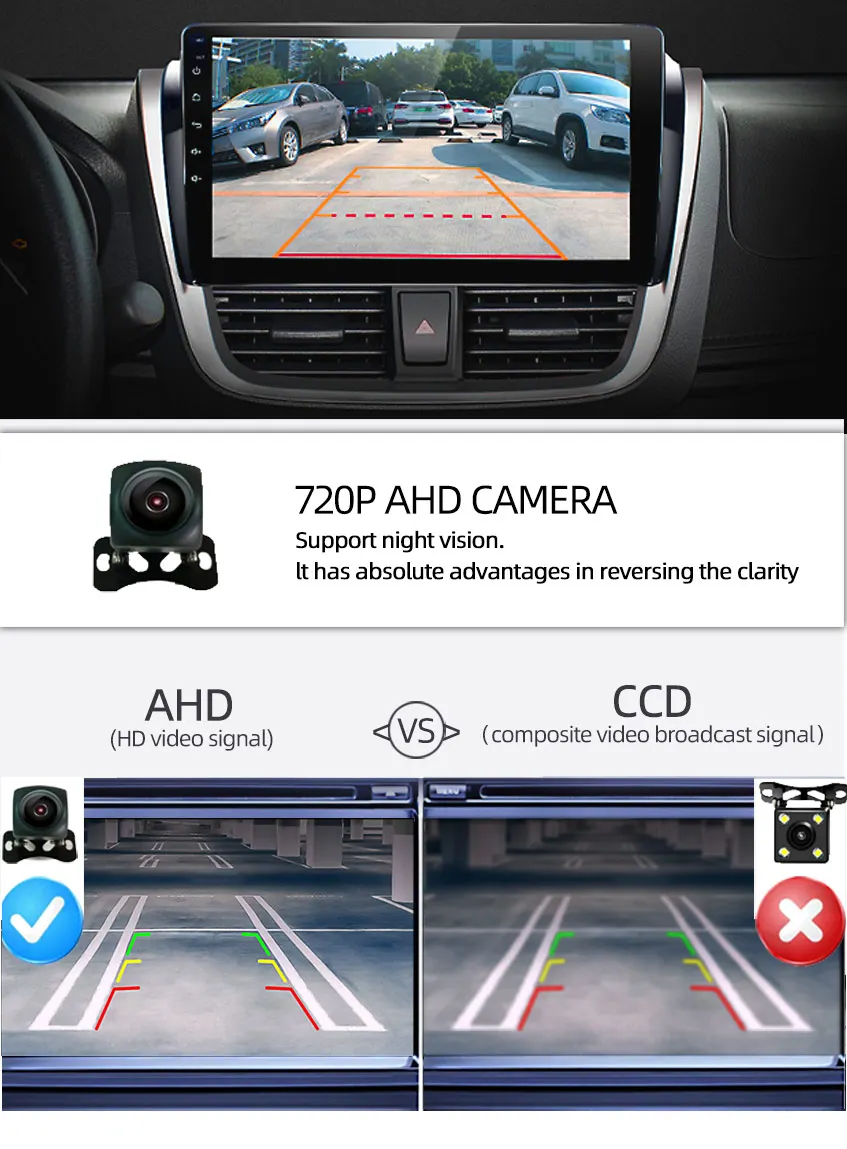

7.port for rear view camera input，Rear view camera: AHD ultra clear camera, video clearer

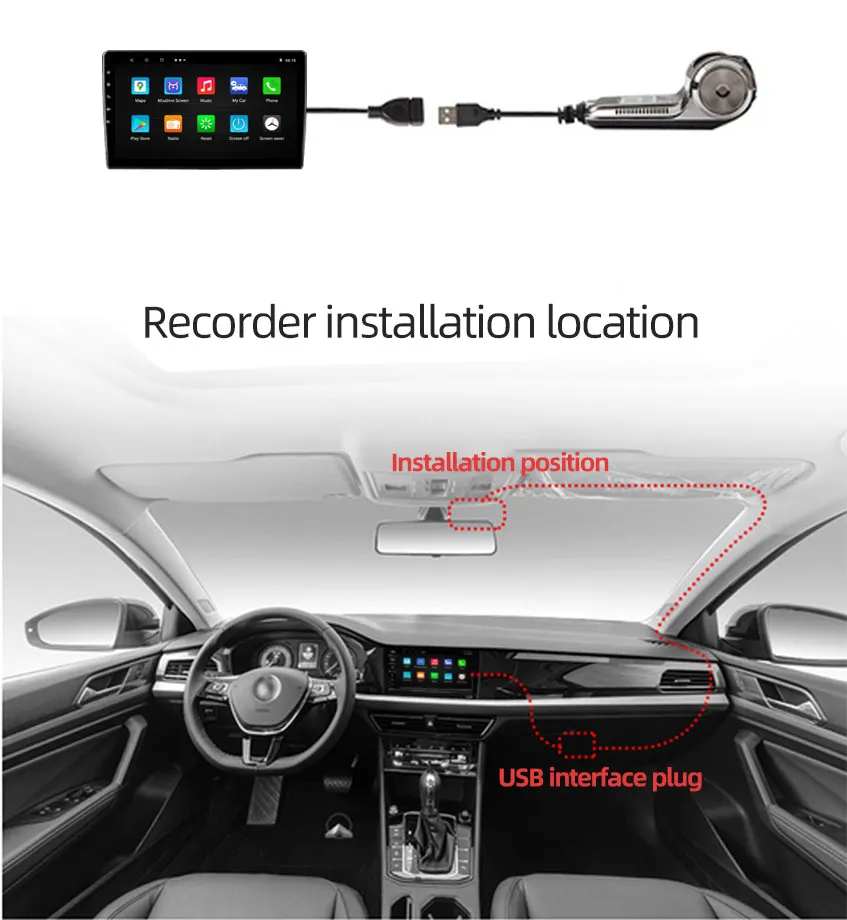

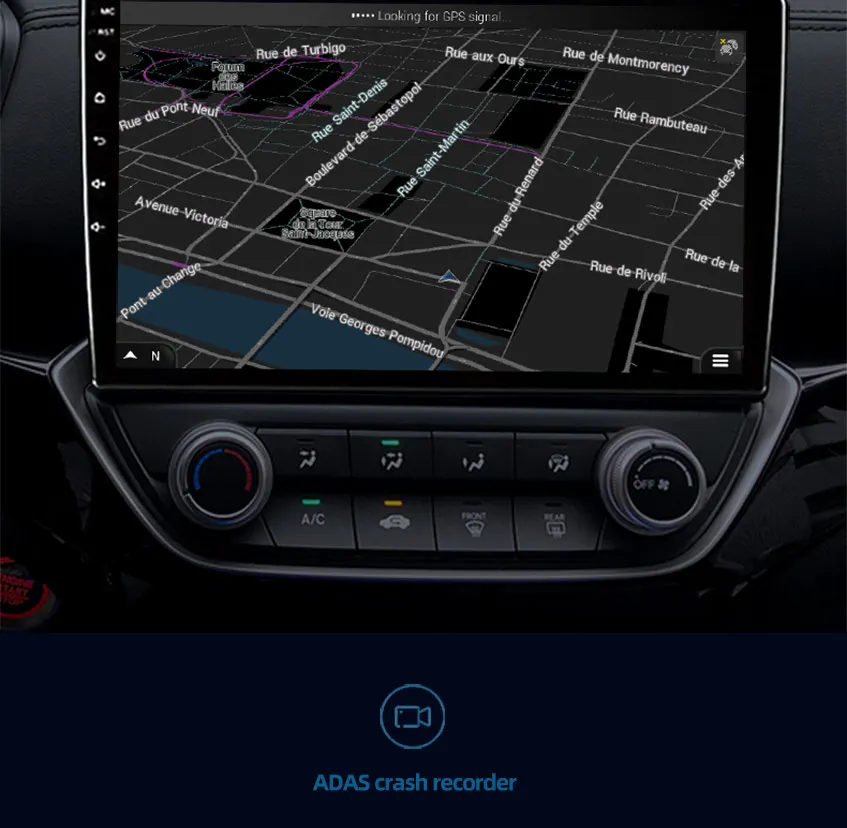

8.ADAS Driving recorder: Assisted driving, timely reminder of potential dangers，and you can choose a recorder and the car has playback, the evidence can be kept.

9.Time setting: you can use the network or GPS to open the date and time automatically, or you can set it manually.

10.FM Radio Frequency Range: 87.5-108MHz

11. Double USB adapter input

12.AV out

13.Supports steering wheel control

14.Support smartphone connection, Mirror link, dual control Full screen capacitive touch screen control

15.Built-in Bluetooth 4.0, hands-free, phone book, music.

16.OSD Language: English, Russian, German, French, Italian, Spanish, Arabic, Hebrew, Japanese, Czech, Portuguese, Romanian, Turkish, Korean, Thai, Latvian, Spanish, Italian, Japanese, Chinese(Traditional),Romanian, Hungarian, Chinese (Simplified), Korean, Swedish,Ukrainian, Croatian, Danish, Norwegian, Finnish, Turkish, Filipino, Portuguese, Lithuanian, Poland, Slovakia, the Netherlands, and Estonia. Approximately 60 languages are available!

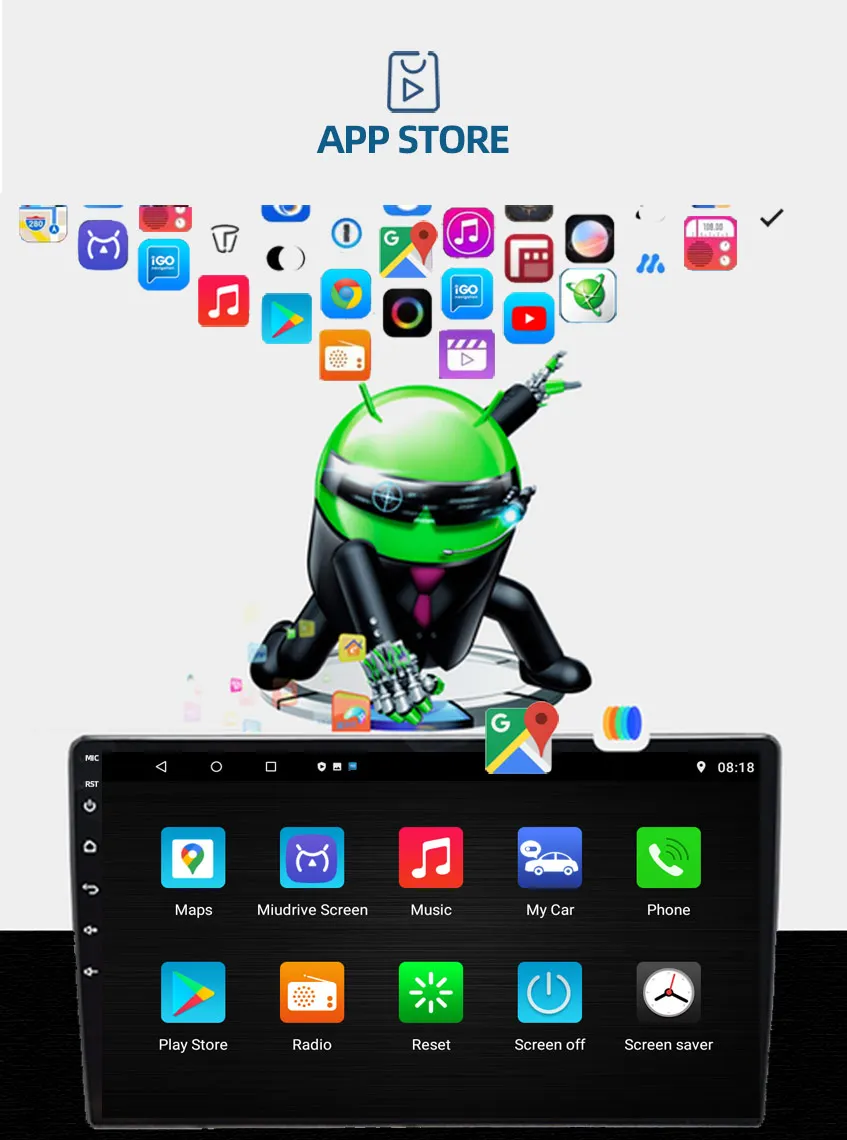

17.File management support: support download, install and delete more than thousands of android apps

18.Ethernet FM Radio: online music you can transfer the music to the car stereo with FM to enjoy the original car stereo sound, with 18 preset stations

19.Car logo change: support

20.Factory setting Keyword: 1617

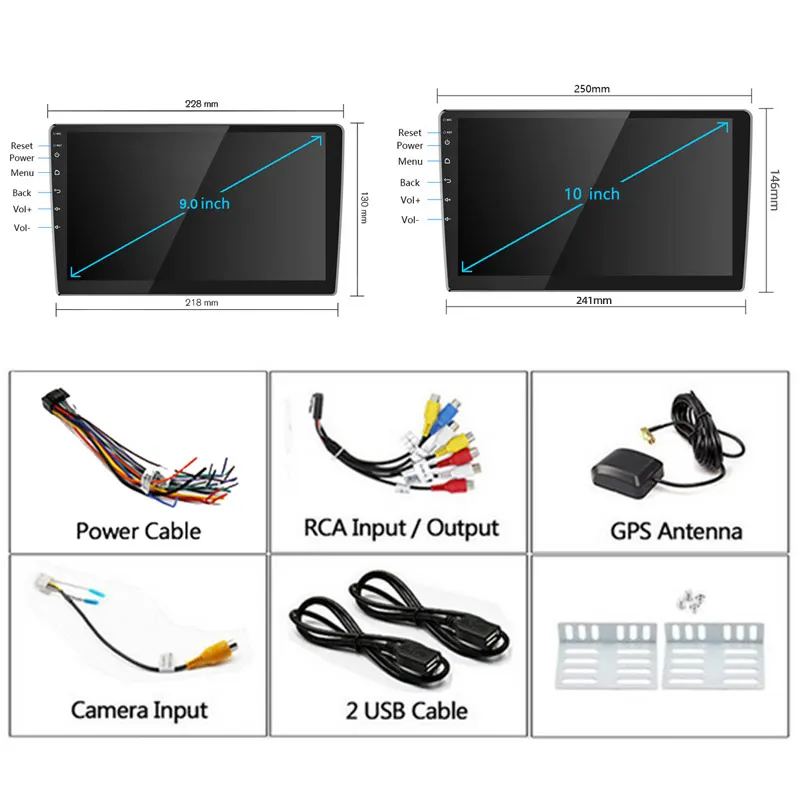

Package includes:

1 x Power Cable

1 x Antena GPS

1 x RCA Input /Output

1 x GPS Antenna

2 x USB cable

1 x Camera Input

2 x Metal frames

4 x Screws

1 x rear camera (optional)

>>For our customers

1. Our goal is to keep working hard to create innovative car multimedia player radio hardware and

software to bring you that personalized experience.

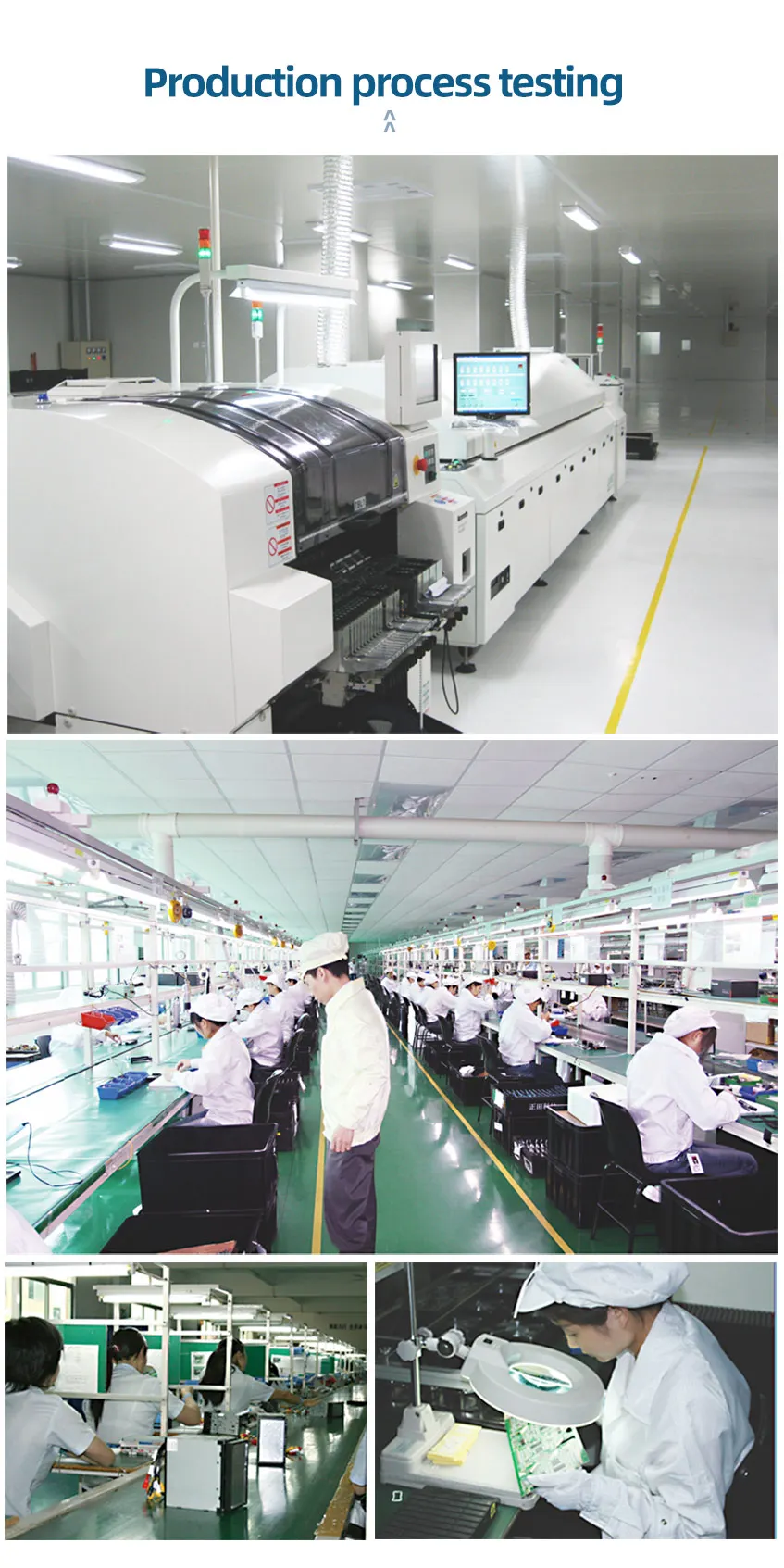

2. All products have passed strict quality test before shipping, make sure it is of high quality.

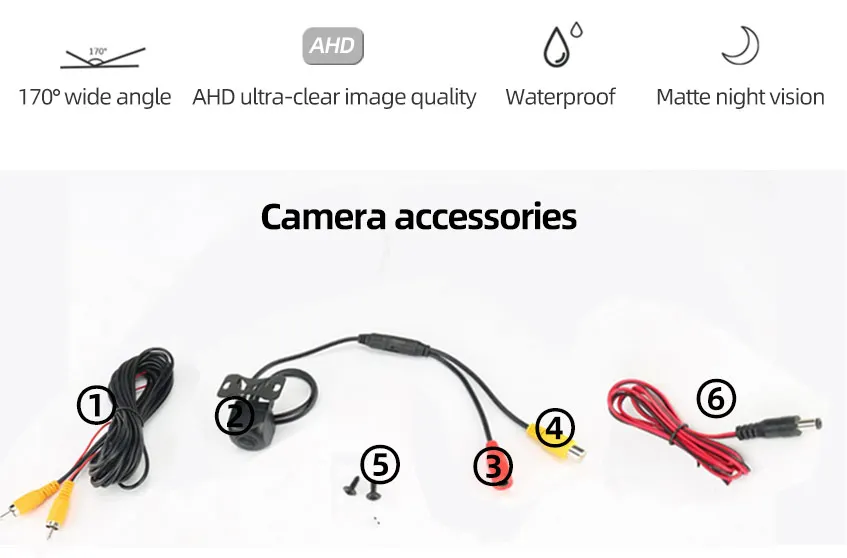

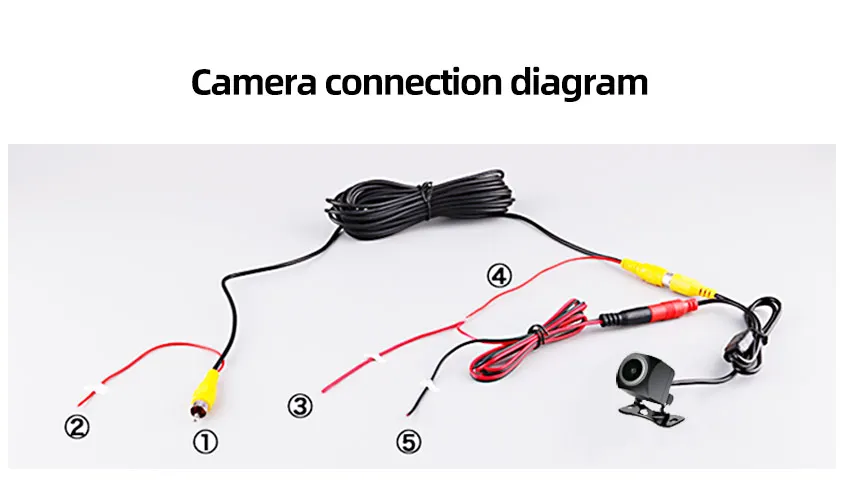

① Video cable ② camera ③ Power connector ④ Video interface ⑤ screw ⑥ power cable

① Connect the navigation input plug
② Connect the navigation reversing detection line
③ Connect to ④, then connect the positive pole of the reversing light
⑤ Connect the negative wire of the reversing light

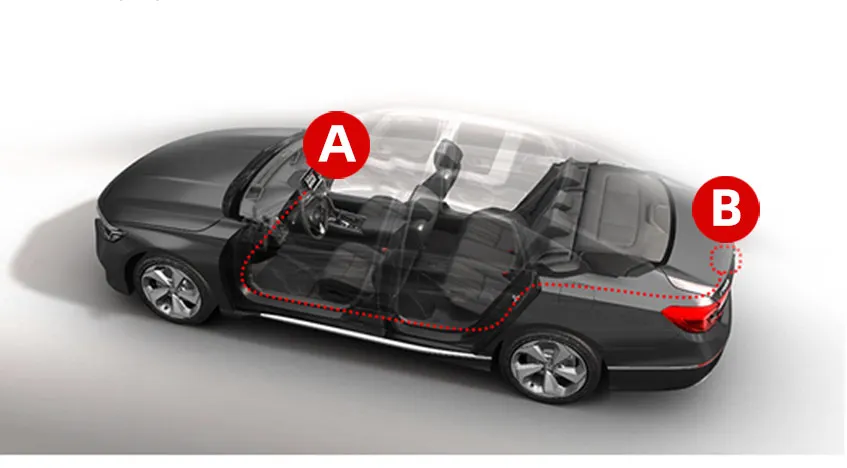

A-Display screen B-camera

-------------------------------------------------------------------------------------------------------------

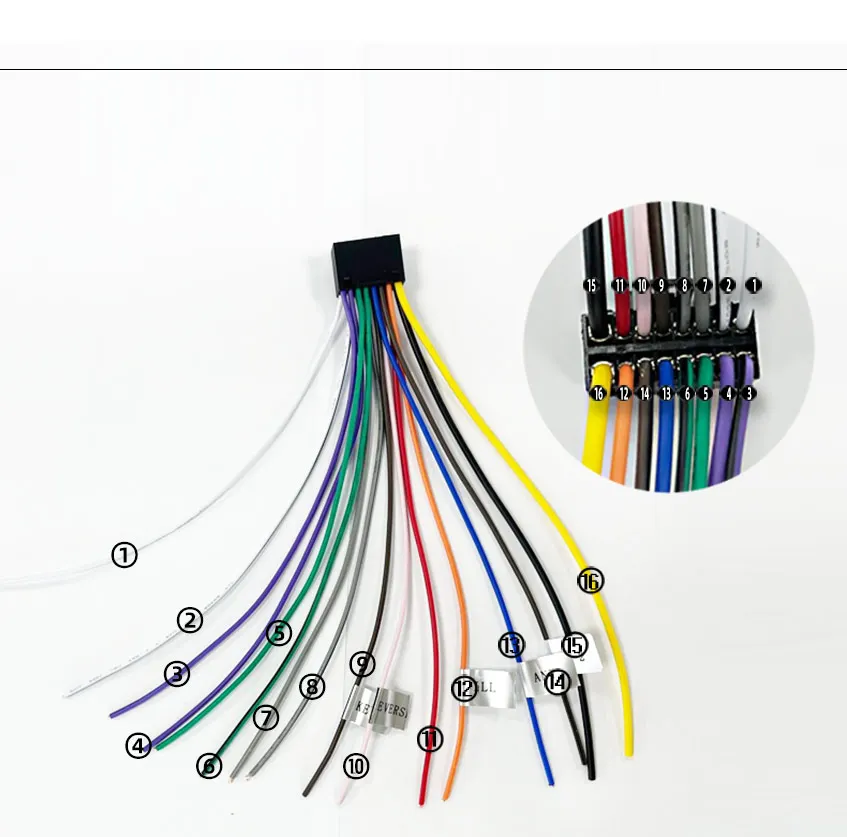

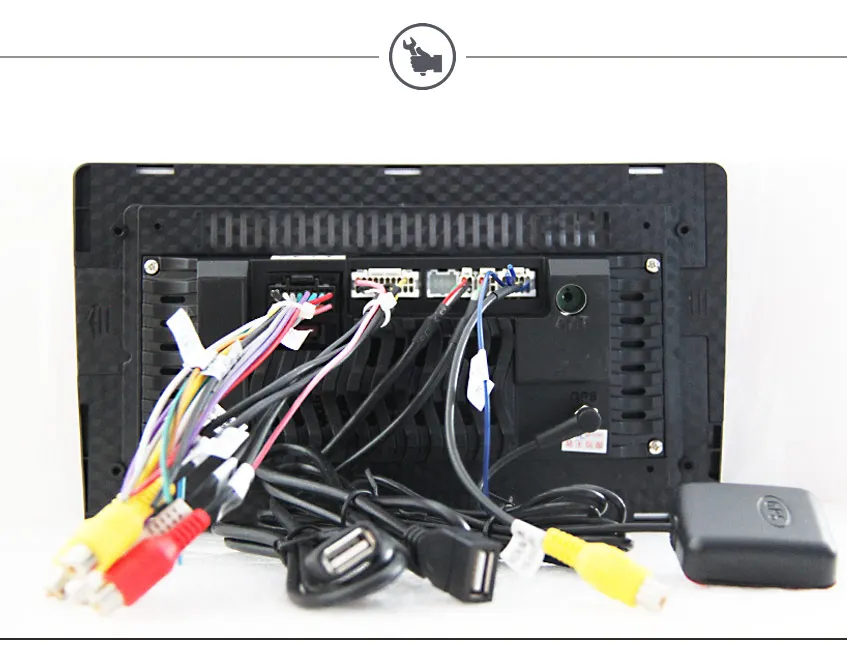

(1) White- Front Left Speaker+                                             (2) White black- Front Left Speaker -
(3) Purple black- Rear Right Speaker -                               (4) Purple-  Rear Right Speaker +
(5) Green- Rear Left Speaker+                                             (6) Green black- Rear Left Speaker-
(7) grey- Front Right Speaker+                                             (8) Gray black- Front Right Speaker-
(9) Brown- Steering wheel control line                                  (10) Reversing control
(11) Key switch                                                                      (12) Small light line

(13) Power Antenna/Amplifier Turn on                                  (14) Brown black- Steering wheel control line
(15) power supply-                                                                 (16) power supply+

Advice:

1. Why can't the car radio turn on?
① Check the car radio voltage: 12V
② When testing this car radio, you can combine the red and
yellow wires and connect them to the positive side of the power supply. Black line to negative power supply.
③ replaces the same type of insurance to test the car radio.Note: You need to use our power cables to connect our carradio, it is not possible to insert the original car plug directly into our machine.

2. Why does the car radio show "no signal" when reversing?
Please check if the camera line is properly connected to the car radio.
Note: the video port of the rear camera must insert the "CAMIN" port of the car radio.

3. Why does the camera show "!" and "I can't see video while driving" when using USB to watch videos?
Please turn off the "video warning" function in settings, then it will be ok.

4. Why can't I search for FM?
① no radio antenna inserted;
② Please check if the radio antenna isplugged in. Insert more antennas several times so that it is well contacted.
③ the signal of your location is not good. Head to a better place to try again.
④ The car radio antenna is broken / no effect; Replace the radio antenna and test again.

5. Why can't you connect the Bluetooth of the car radio?
① Open the phone settings interface, open the Bluetooth into the Bluetooth function, search for Bluetooth devices, find the Bluetooth model of the player to pair; If you need a pairing code, enter 0000; if not, try 1234 or 123456.
② Please try to use another mobile phone to test this function.All the methods are correct and still can't use the Bluetooth. Unplug the plug from the back of the player and plug it in after 3 minutes.
