Parameters of IK122 Pro

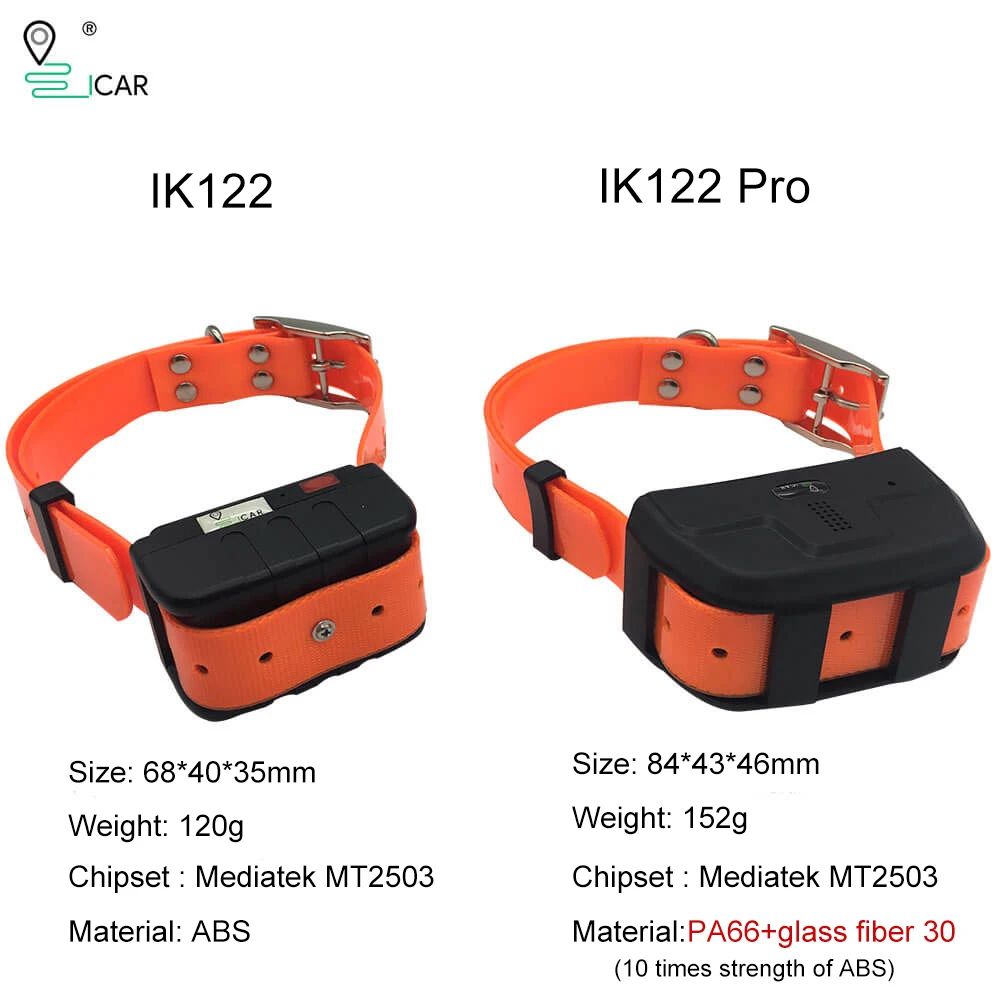

Device Dimension : 84*43*46mm

Device Weight :152g

Telecom Chipset : Mediatek MT2503

Network : GSM&GPRS

Frequency Band : GSM 850/900/1800/1900MHz

Location Chipset : Mediatek MT2503

Location Way : LBS/AGPS/GPS/Glonass

Location accuracy : <10 meters

Tracking sensitivity : -162 dBm

Humidity : 5%--95% non-condensing

Internal Battery : 3.7V 4000mAh Li-Polymer battery

Standby Time : 20 days

Charging Way : Magnetic Charger

Sim Card : Nano SIM card

Warning: Sim card is not included in this device. You have to buy and insert a SIM card before the device work.

1.High Level IP68 Waterproof

  Don't have to worry about the hounds when hunting in the montain on rainy days.

2.4000mah Large Battery Capacity

   5V 1A charging for 5-8 hours,the IK122 Pro hunting dog gps tracker can track your dog for about

  64  hours even postioning every 10 seconds.

3.Magnetic Charging

   Magnetic Charging Design is for fully waterproof of the device.

    How long will the IK122 Pro work after fully charging?

    Postioning per 5 seconds      24 hours

Postioning per 10 seconds     64 hours （Defaut）

Postioning per 1 minute         4 days

    Postioning per 1 hour            15 days

    Postioning per 24 hours        1 month

4.History route playback

  All the historial route of the dog can be stored for up to 3 months.

5.Geo-fence

  In order to protect the dog, you can set a geo fence for the IK122 Pro to set a safe area for the hound.

   As soon as the dog leave the area, the tracker will send you an alarm on your phone.

6.Postioning Accuracys

   5-10 meters

7.About Collars

Color: Orange / Green / Blue / Pink / Yellow

  Total Length of the Collar: 73.6 mm

  Width of the Collar: 26mm

  Weight of the Collar: 82g

  Please make sure this tracker is suitable for your dog before you placing order.

Demo: icardemo    password: 123456

Track your devices on our site : www.icargps.net

Or you can download the app to track it.

IK122  Pro Dog GPS Tracker User Manual

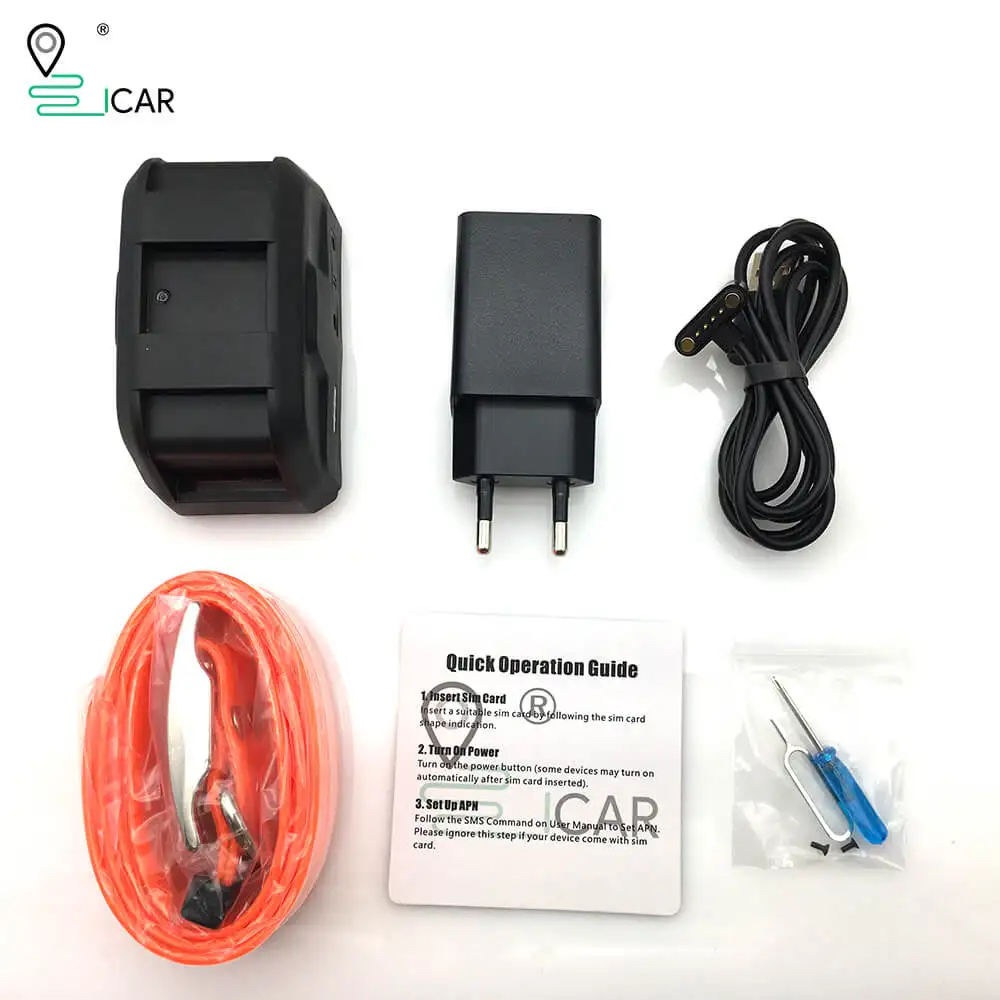

1pc*ICAR GPS Tracker IK122 Pro （4000mah）

1pc* Magnetic USB cable

1pc* User manual

1pc* Dog Belt (Color Randomly)

1pc* Screw pen

2pc* Replacement screws

1pc* gift box

l Q：Start up Fail?

l A：Check the device power on or not.

l Q：The device can not obtain location information?

l A：Place the unit at the open area to test.

l Q：How to choose SIM card?

l A:  the SIM card must support GSM&GPRS，and ensure that the card has enough currency and credit.

l Q: How to use in the foreign countries?

l A：please set the APN before use，please edit the text “APN123456 CMNET “ and send it to the SIM card of the device，CMNET is Chinese operator’s APN, Replace the corresponding APN when use in other countries, APN details, please consult your local SIM card carrier.
